Tools

EDUE creates:
• Tools in single blocks and with several stations;
• Progressive tools
• Transfer tools
With dimensions  up to 4000 x 2000 mm
• Special machinery
• Hydraulic units
• Pneumatics units

For the cold processing of metal sheets made of:
• Iron;
• Galvanised iron;
• Pre-painted iron;
• Polished and satin-finish stainless steel;
• Aluminium;

• Copper;
• Etc…

Here are some photos of our creations:

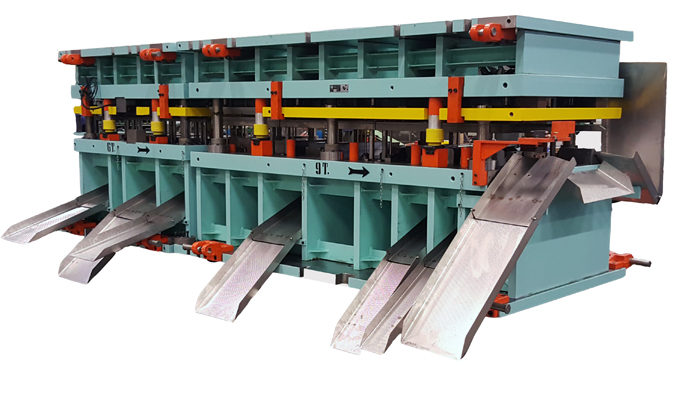

Transfer tool for household appliance component

Pressed sheet metal: DX 52 – thickness 6/10 mm
Dimensions: 2800 x 1500 mm

Weight: approx. 6.000 Kg

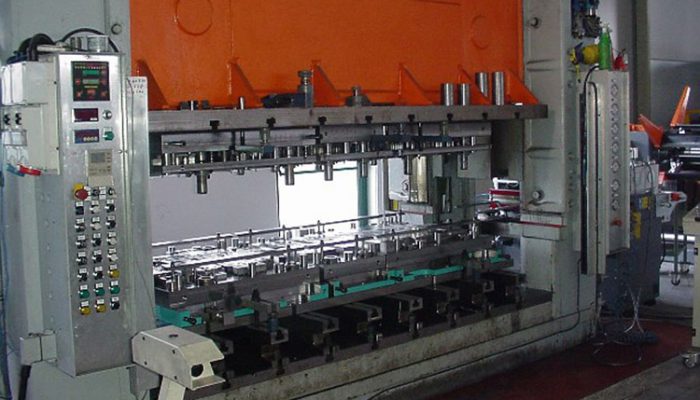

Progressive tool Cx2 for automotive sector component

Pressed sheet metal: Fe 340 – th. 10/10 mm

Dimensions: 3000 x 1500 x H1100 mm

Weight: approx. 9.000 Kg

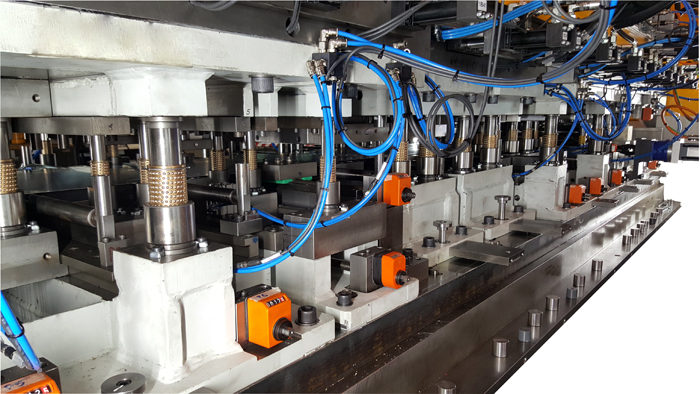

Automatic tool with incorporate transfer CNC

Bending and cutting processing on special aluminium pipe – thickness 10/10 mm

Dimensions: 3000 x 2000 x H800 mm

Weight: approx. 8.200 Kg

Transfer tool for household appliance component

Pressed sheet metal: DX 52 – thickness 6/10 mm

Dimensions: 2500 x 1500 mm

Weight: approx. 6.000 Kg

Progressive tool Cx2 for automotive sector component

Pressed sheet metal: DP600 – thickness 8/10 mm

Dimensions: 2700 x 1200 mm

Weight: approx. 7.000 Kg

Progressive tool Cx2 for automotive sector component

Pressed sheet metal: Fe 340 – th. 12/10 mm
Dimensions: 3500 x 1200 x H1100 mm

Weight: approx. 12.000 Kg

Progressive tool Cx2 for automotive sector component

Pressed sheet metal: DP600 – th. 15/10 mm

Dimensions: 3000 x 1500 mm

Weight: approx. 9.000 Kg

Detail of a mechanical/pneumatic automatism

Applied to a progressive mould in order to take, rotate and move the metal sheet from the detachment station to the drilling station and to the discharge outside the mould

Detail

Application of a system of mechanical tapping with integrated lubrification device on progressive mould

Progressive tool Cx1 for automotive sector component

Pressed sheet metal: DP 600 – thickness 10/12 mm

Dimensions: 2500 x 1000 mm

Weight: approx. 5.500 Kg

Progressive tool Cx1 for household appliance component

Pressed sheet metal: DX 52 – thickness 7/10 mm

Dimensions: 2200 x 1000 mm

Weight: approx. 4.500 Kg

Progressive tool Cx1 for household appliance component

Pressed sheet metal: DX 52 – thickness 7/10 mm

Dimensions: 2200 x 1000 mm

Weight: approx. 4.500 Kg

Progressive tool Cx1 for automotive sector component

Pressed sheet metal: S355 – thickness 12/10 mm

Dimensions: 4000 x 1500 x H1100mm

Weight: approx. 16.000 Kg

Progressive mould for ducts production line

Pressed sheet metal: Fe zincato/inox – th. from 0.6 to 2 mm

Dimensions: 4000 x 1500 x H700 mm

Weight: approx. 13.000 Kg

Battery of transfer tools for household appliance component

Sheet metal: pre-painted sheet metal – thickness 7/10 mm
Single Tool Dimensions: 1600 x 1500 x H700 mm

Single Tool Weight: approx. 5.000 kg

Progressive mould Cx2 for household appliance component

Pressed sheet metal: DC 03 – thickness 15/10 mm

Dimensions: 2500 x 1400 x H900 mm

Weight: approx. 8.500 Kg
Tool with mechanical tapping machines
